Description

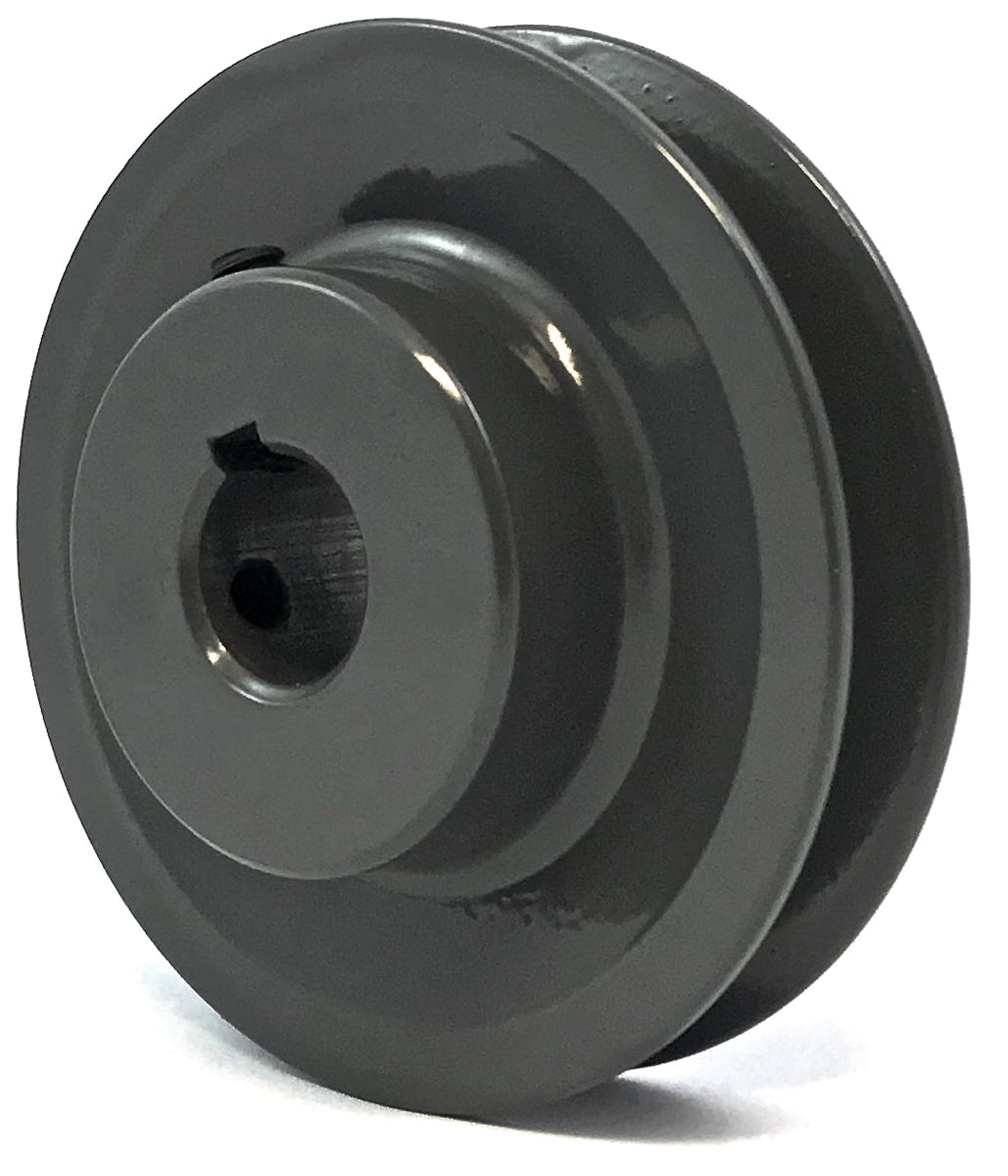

This AK34 Pulley 5/8″ bore is directly interchangeable with other manufacturers, is 3.45″ in diameter, is used with A style V-Belts, and is manufactured in accordance with ARPM Standard IP20 for safe operation. What separates this AK34 pulley from the others is that it is made using a high grade-35 cast iron, is phosphate coated, painted, and balanced at the factory. Using the grade 35 cast iron offers a higher tensile strength and is more wear resistant than the more commonly used grade 25. While the phosphate coated and then painted finish adds corrosion resistance to the AK34 pulley.
Fits Belt Types: A, 4L, AX
AK34 Pulley 5/8″ Dimensions
- Pulley Size: AK34
- Outside Diameter (O.D.): 3.45″
- Pitch Diameter For 4L/A Belts (P.D.): 3.20″
- Pitch Diameter For 3L Belts (P.D.): 2.86″
- Pulley Type: 2
- Bore Size: 5/8″
- Key-Way Size: 3/16″ X 3/32″
- Dimension (F): 21/32″
- Dimension (L): 15/16″
- Dimension (P): 7/16″
- Dimension (C): 5/32″
- Weight: 0.9 LBS
